Drag Drop GridView Rows With JQuery Asp.Net

This Example explains How To Implement Drag And Drop GridView Rows Functionality Using JQuery JavaScript In Asp.Net 2.0 3.5 4.0 To Rearrange Row On Client Side.

You need to download and add JQuery and TableDnD plugin in your application.

GridView is populated with Northwind database using SqlDataSource.

Add Script references and css style in head section of page.

   1:  <style type="text/css">

   2:     .highlight

   3:      {

   4:          color : White !important;

   5:          background-color : Teal !important;

   6:      }

   7:  </style>

   8:  <script src="jquery-1.7.1.js" type="text/javascript"/>

   9:  <script src="jquery.tablednd.0.7.min.js" type="text/javascript"/>

Call tableDnD function of drag and drop plugin by passing Gridview Id.

   1:  <script type="text/javascript" language="javascript">

   2:  $(document).ready(function()

   3:  {

   4:  $("#<%=GridView1.ClientID%>").tableDnD(

   5:              {

   6:                  onDragClass: "highlight"

   7:              });

   8:  });

   9:  </script>

  10:  </head>

   1:  <asp:GridView ID="GridView1" runat="server" AllowPaging="True"

   2:                AutoGenerateColumns="False" DataKeyNames="OrderID"

   3:                DataSourceID="SqlDataSource1">

   4:  <Columns>

   5:  <asp:BoundField DataField="OrderID" HeaderText="OrderID"/>

   6:  <asp:BoundField DataField="Freight" HeaderText="Freight"/>

   7:  <asp:BoundField DataField="ShipName" HeaderText="ShipName"/>

   8:  <asp:BoundField DataField="ShipCity" HeaderText="ShipCity"/>

   9:  <asp:BoundField DataField="ShipCountry" HeaderText="ShipCountry"/>

  10:  </Columns>

  11:  </asp:GridView>

Read More

Publish Deploy Asp.Net WebSite Application On IIS7 Server

This post explains how to Publish And Deploy Asp.Net Web Site Application On IIS7 Server.

Open Application in Visual Studio, Click on Build > Publish Web Site.

Browse to where you want to save published DLLs,Files and other aspx pages. (TestWebSite)

Copy TestWebSite folder inside C:\inetpub/wwwroot directory.


Click on Start Menu > Run > INETMGR to open IIS manager.

Click on sites > Default Web Site.

Right Click on folder we copied and Select Convert To Application.

Create new pool by right clicking on Application pools.

Go to Advance settings

Change Identity property to Local System.

Right Click On TestWebSite Application > Manage Application > Advance Settings.

Assign Application Pool we created earlier to this web App.

Open Internet browser and type http://localhost/testwebsite to browse your website application.

Read More

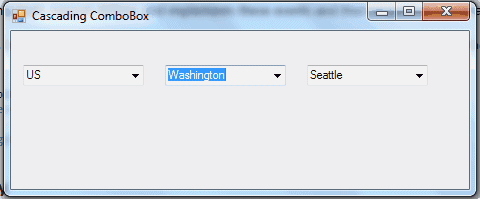

Cascading ComboBox In Winforms Windows Forms C# VB.NET

This example explains How To Create Cascading ComboBox Dependent On One Another In WinForms Windows Forms Applications Using C# And VB.Net.


I have used Country, State, City tables from database to populate respective cascading combobox based on selection of country and state.


Drag 3 combobox controls from toolbar on the windows form, write following code to populate comboboxes.

Table schemas are shown below.

Write connection string in app.config file

---

<configuration>

<connectionStrings>

<add name="connectionString"

     connectionString="Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Cascading.mdf;Integrated Security=True;User Instance=True"

     providerName="System.Data.SqlClient" />

</connectionStrings>

</configuration>

Bind Country ComboBox when Form loads

---

01using System;

02using System.Data;

03using System.Windows.Forms;

04using System.Configuration;

05using System.Data.SqlClient;

06

07namespace CascadingComboBox

08{

09    public partial class Form1 : Form

10    {

11        string strConn = ConfigurationManager.ConnectionStrings["connectionString"].ConnectionString;

12        public Form1()

13        {

14            InitializeComponent();

15        }

16

17        private void Form1_Load(object sender, EventArgs e)

18        {

19            FillCountry();

20        }

21        private void FillCountry()

22        {

23            SqlConnection con = new SqlConnection(strConn);

24            SqlCommand cmd = new SqlCommand();

25            cmd.Connection = con;

26            cmd.CommandType = CommandType.Text;

27            cmd.CommandText = "SELECT CountryID, CountryName FROM Country";

28            DataSet objDs = new DataSet();

29            SqlDataAdapter dAdapter = new SqlDataAdapter();

30            dAdapter.SelectCommand = cmd;

31            con.Open();

32            dAdapter.Fill(objDs);

33            con.Close();

34            cmbCountry.ValueMember = "CountryID";

35            cmbCountry.DisplayMember = "CountryName";

36            cmbCountry.DataSource = objDs.Tables[0];

37        }

38    }

39}

Populate State and City combobox in SelectedIndexChanged event of country,State combobox based on selected IDs

---

01private void cmbCountry_SelectedIndexChanged(object sender, EventArgs e)

02        {

03            if (cmbCountry.SelectedValue.ToString() != "")

04            {

05                int CountryID = Convert.ToInt32(cmbCountry.SelectedValue.ToString());

06                FillStates(CountryID);

07                cmbCity.SelectedIndex = 0;

08            }

09        }

10

11        private void FillStates(int countryID)

12        {

13            SqlConnection con = new SqlConnection(strConn);

14            SqlCommand cmd = new SqlCommand();

15            cmd.Connection = con;

16            cmd.CommandType = CommandType.Text;

17            cmd.CommandText = "SELECT StateID, StateName FROM State WHERE CountryID =@CountryID";

18            cmd.Parameters.AddWithValue("@CountryID", countryID);

19            DataSet objDs = new DataSet();

20            SqlDataAdapter dAdapter = new SqlDataAdapter();

21            dAdapter.SelectCommand = cmd;

22            con.Open();

23            dAdapter.Fill(objDs);

24            con.Close();

25            if (objDs.Tables[0].Rows.Count > 0)

26            {

27                cmbState.ValueMember = "StateID";

28                cmbState.DisplayMember = "StateName";

29                cmbState.DataSource = objDs.Tables[0];

30            }

31

32        }

33

34        private void cmbState_SelectedIndexChanged(object sender, EventArgs e)

35        {

36            int StateID = Convert.ToInt32(cmbState.SelectedValue.ToString());

37            FillCities(StateID);

38        }

39

40        private void FillCities(int stateID)

41        {

42            SqlConnection con = new SqlConnection(strConn);

43            SqlCommand cmd = new SqlCommand();

44            cmd.Connection = con;

45            cmd.CommandType = CommandType.Text;

46            cmd.CommandText = "SELECT CityID, CityName FROM City WHERE StateID =@StateID";

47            cmd.Parameters.AddWithValue("@StateID", stateID);

48            DataSet objDs = new DataSet();

49            SqlDataAdapter dAdapter = new SqlDataAdapter();

50            dAdapter.SelectCommand = cmd;

51            con.Open();

52            dAdapter.Fill(objDs);

53            con.Close();

54            if (objDs.Tables[0].Rows.Count > 0)

55            {

56                cmbCity.DataSource = objDs.Tables[0];

57                cmbCity.DisplayMember = "CityName";

58                cmbCity.ValueMember = "CItyID";

59

60            }

61

62        }

VB.NET CODE

---

01Private Sub Form1_Load(sender As Object, e As EventArgs)

02 FillCountry()

03End Sub

04Private Sub FillCountry()

05 Dim con As New SqlConnection(strConn)

06 Dim cmd As New SqlCommand()

07 cmd.Connection = con

08 cmd.CommandType = CommandType.Text

09 cmd.CommandText = "SELECT CountryID, CountryName FROM Country"

10 Dim objDs As New DataSet()

11 Dim dAdapter As New SqlDataAdapter()

12 dAdapter.SelectCommand = cmd

13 con.Open()

14 dAdapter.Fill(objDs)

15 con.Close()

16 cmbCountry.ValueMember = "CountryID"

17 cmbCountry.DisplayMember = "CountryName"

18 cmbCountry.DataSource = objDs.Tables(0)

19End Sub

20

21Private Sub cmbCountry_SelectedIndexChanged(sender As Object, e As EventArgs)

22 If cmbCountry.SelectedValue.ToString() <> "" Then

23  Dim CountryID As Integer = Convert.ToInt32(cmbCountry.SelectedValue.ToString())

24  FillStates(CountryID)

25  cmbCity.SelectedIndex = 0

26 End If

27End Sub

28

29Private Sub FillStates(countryID As Integer)

30 Dim con As New SqlConnection(strConn)

31 Dim cmd As New SqlCommand()

32 cmd.Connection = con

33 cmd.CommandType = CommandType.Text

34 cmd.CommandText = "SELECT StateID, StateName FROM State WHERE CountryID =@CountryID"

35 cmd.Parameters.AddWithValue("@CountryID", countryID)

36 Dim objDs As New DataSet()

37 Dim dAdapter As New SqlDataAdapter()

38 dAdapter.SelectCommand = cmd

39 con.Open()

40 dAdapter.Fill(objDs)

41 con.Close()

42 If objDs.Tables(0).Rows.Count > 0 Then

43  cmbState.ValueMember = "StateID"

44  cmbState.DisplayMember = "StateName"

45  cmbState.DataSource = objDs.Tables(0)

46 End If

47

48End Sub

49

50Private Sub cmbState_SelectedIndexChanged(sender As Object, e As EventArgs)

51 Dim StateID As Integer = Convert.ToInt32(cmbState.SelectedValue.ToString())

52 FillCities(StateID)

53End Sub

54

55Private Sub FillCities(stateID As Integer)

56 Dim con As New SqlConnection(strConn)

57 Dim cmd As New SqlCommand()

58 cmd.Connection = con

59 cmd.CommandType = CommandType.Text

60 cmd.CommandText = "SELECT CityID, CityName FROM City WHERE StateID =@StateID"

61 cmd.Parameters.AddWithValue("@StateID", stateID)

62 Dim objDs As New DataSet()

63 Dim dAdapter As New SqlDataAdapter()

64 dAdapter.SelectCommand = cmd

65 con.Open()

66 dAdapter.Fill(objDs)

67 con.Close()

68 If objDs.Tables(0).Rows.Count > 0 Then

69  cmbCity.DataSource = objDs.Tables(0)

70  cmbCity.DisplayMember = "CityName"

71

72  cmbCity.ValueMember = "CItyID"

73 End If

74

75End Sub

Build and run the application.
